Interlocking Panel - 14.5cm Industry knowledge

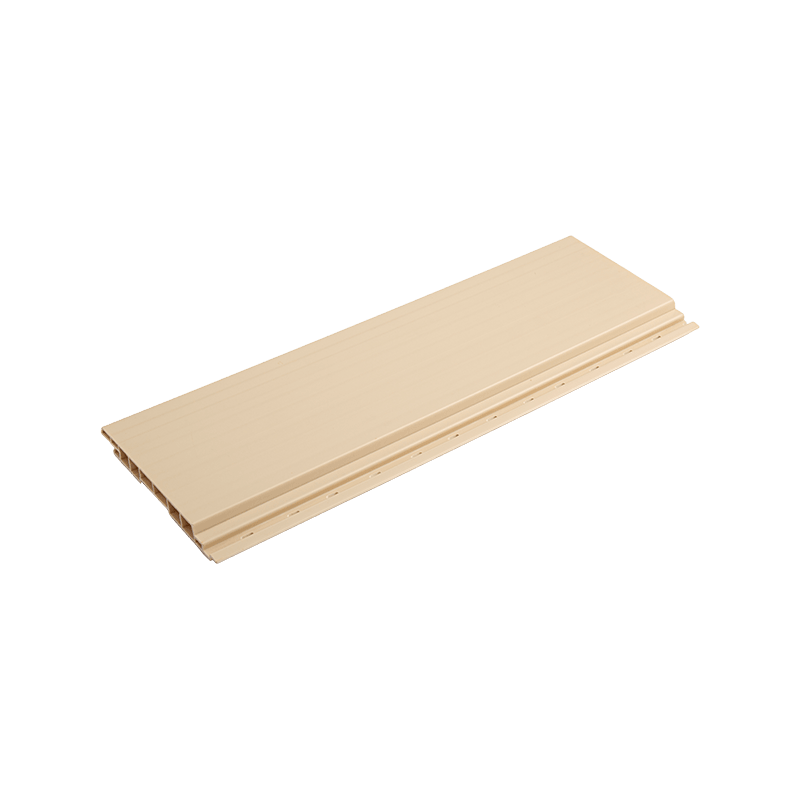

Yicheng New Materials Co., Ltd. manufactures Interlocking Panel - 14.5cm, the 145×16 mm custom PVC wall panel in our Custom-Made Panels range. We produce this narrow interlocking profile as an OEM/ODM program for distributors, importers, contractors and project partners, covering panel color, printed décor, surface finish, panel length, packaging and branded sales materials.

Since 1998 our factory in Haining, Jiaxing, Zhejiang has specialized in interior and decorative building materials. A 30,000 m² facility, 30+ production lines and roughly 1,500 exported 40HQ containers per year support both trial orders and repeat container programs.

Where the 14.5cm Interlocking Panel Fits

The 145 mm face and 16 mm stated thickness give this panel its place in the custom-made family: a narrow, repeatable module for interior wall cladding and feature work where a defined joint line, fast dry installation and easy transport matter more than large-format coverage. Multiple 14.5cm panels pair with our wider Interlocking Panel - 14.5cm formats to build mixed-width layouts for residential renovation, retail interiors, hospitality fit-outs and light commercial cladding.

  • Renovation work: panel-on-panel or direct-to-wall fixing where existing surfaces are uneven or removal is undesirable.
  • Distributor assortments: a narrow module that complements PVC ceilings and wider wall panel ranges in one showroom or depot catalogue.
  • Project volumes: contractor schedules and phased deliveries where consistent color from one production standard is required.
  • Brand programs: OEM/ODM orders with customer color cards, retail sleeve packaging and market-specific presentation.

Product Range and How the Formats Compare

The Custom-Made Panels group covers several interlocking widths so a job can specify one face module across walls and ceilings and still keep installation and accessory logic consistent.

Panel series Module Typical interior use
Interlocking Panel - 14.5cm 145 mm face, 16 mm stated thickness Narrow-feature wall cladding, details, retail and residential refurbishment
Interlocking Panel - 30cm Intermediate interlocking face General wall lining at faster coverage per board
Interlocking Panel - 40.6cm Wide interlocking face Large wall surfaces, commercial and hospitality projects
PVC Wall Panel 40–100cm and PVC Ceiling 18–60cm Wide-format wall and ceiling ranges Full-room systems where ceilings and walls are specified together

We treat the Custom Interlocking Panel - 14.5cm OEM/ODM series as a configurable product line rather than a fixed catalogue item. The same interlocking geometry can be supplied in different décor concepts, gloss levels and packing formats, and it is quoted alongside our PVC Wall Panel ranges when a distributor needs a complete interior wall offer.

Configuration Variables We Quote Against

Configuration starts from the working surface. Interlocking panels are installed over battens, furring or a prepared substrate, with the male-and-female edge engaged along the length of the wall, so fixing zones, corner trims and end closures are planned together with the panel itself. Our PVC profile and trim accessories complete the joint at corners, edges and base lines.

  • Color: matching to customer swatches or reference pictures, including multi-color schemes across a batch.
  • Surface: matte, high-gloss, transfer-print and lamination finishes, each inspected for texture and color consistency.
  • Panel length and cut: standard lengths or project lengths cut to schedule; irregular cuts agreed at sample stage.
  • Décor: wood grain, marble, solid and corporate print concepts produced on our printing and laminating lines.
  • Packing: export cartons, quantity per bundle, corner protection, private-label sleeves and pallet format.
  • Documentation: product specification sheets, catalogue files and marketing photos or video supplied with the order.

Manufacturing, Inspection and Batch Consistency

Automated lines run from raw-material batching to finished packing, with computer-controlled process parameters that keep the profile geometry and surface finish stable between runs. The first production batch of each custom item is retained as the reference sample; subsequent batches are checked item-by-item against it for appearance, color and texture.

Incoming materials

Resin, additives and decorative films are inspected on arrival for environmental grade, physical strength and surface condition.

In-process patrol

Sampling during production tracks process parameters and surface condition so deviations are corrected before packing.

Finished goods

Standard pre-delivery checks include bending, impact, hardness, wear and dimensional inspection, with inspection photos or reports on request.

Resistance testing covers waterproof and moisture performance, flame retardancy, anti-aging and corrosion behavior, which matters where the 14.5cm panel is used in humid or temperature-changing interiors. Where a project calls for third-party certification against a local standard, we confirm the applicable test scope and document route during quotation rather than after order placement.

Installation and Project Coordination

We support the installer at layout stage. Panel direction, starting corner, expansion allowance at wall ends, trim selection and fixing spacing are agreed as part of the technical package so quantities and accessories arrive matched to the site.

  1. Confirm the wall area, ceiling height and substrate condition, including whether battens are permitted.
  2. Set the panel run direction and starting edge; calculate linear metres, number of panels and cut allowance.
  3. Select matching trims at internal and external corners, top and bottom edges.
  4. Agree a moisture and thermal conditioning period before fixing in humid climates.
  5. Keep spare packs from the same production batch for later repair or extension work.

Information We Use to Configure Your Solution

A quotation for the 14.5cm interlocking panel is prepared from a short technical brief. The more precisely these items are defined, the closer the sample matches the final production standard.

  • Application: interior wall, ceiling, feature wall or covered exterior; residential, retail or commercial.
  • Required décor, color reference and surface gloss level.
  • Panel length, quantity in linear metres or pieces, and delivery schedule per phase.
  • Packing format, private-label requirements and branding assets.
  • Accessory list: corner, end and base trims required for the layout.
  • Target market and any local performance, labeling or packaging obligations to be addressed.

Frequently Asked Questions

What is the 145×16 mm dimension on this panel?

It is the stated face width and panel thickness of the custom interlocking profile: 145 mm visible face and 16 mm thickness when assembled with the interlocking edge engaged. We confirm the exact build-up and coverage per panel on the approved sample.

Can we order our own colors and printed patterns?

Yes. Color matching is done from customer swatches or reference images, and patterns from wood grain to corporate artwork can be produced on our printing and laminating lines. The approved sample defines the color and texture standard against which later batches are compared.

How do you protect color consistency across repeat orders?

We retain the first production batch as an archive sample. Every later batch is compared against it item-by-item for appearance, color and texture, and dimensional and surface checks continue during production.

Can Yicheng supply the whole wall and ceiling package for a project?

Our Products range includes PVC ceilings from 18cm to 60cm, PVC wall panels from 40cm to 100cm, the interlocking series and matching trims. We build the panel schedule and trim list together so modules and accessories arrive as one coordinated delivery.
