Custom Aluminum Honeycomb Panel OEM/ODM Factory
Home / Products / Wall Panel / Aluminum Honeycomb Panel

Aluminum Honeycomb Panel OEM/ODM Suppliers

Aluminum Honeycomb Panel is a new type of light-weight and high-strength decorative panel, composed of upper and lower aluminum alloy panels (with PVC co-extrusion layer on the surface) and middle aluminum honeycomb core compounded by special adhesive. Its core highlight is the PVC co-extrusion process on the upper and lower surfaces, which combines the strength of aluminum alloy and the weather resistance of PVC. The PVC co-extrusion layer can effectively improve the scratch resistance, wear resistance, corrosion resistance and yellowing resistance of the panel surface, not easy to fade and easy to clean, and at the same time make the surface texture more delicate with a high degree of color selectivity. The panel itself has the advantages of ultra-light weight and high strength, with a weight only 1/3-1/5 of that of traditional panels, but it has excellent bearing capacity and impact resistance, not easy to deform or break. Combined with the protective characteristics of the PVC co-extrusion layer, its durability is greatly improved. At the same time, it has good sound insulation, heat insulation, flame retardant and moisture-proof performance, which can effectively block external noise and temperature conduction, meeting the safety standards of public spaces. It is also environmentally friendly, non-toxic and recyclable, belonging to green and environmentally friendly building materials. The surface can be customized with various colors and textures, with a high-end and grand decorative effect. It is widely used in scenes such as building exterior walls, indoor ceilings, partitions, curtain walls, large exhibition halls, airports and high-speed railway stations. It is easy and efficient to install, which can greatly reduce the building load, combining safety, practicality and decorativeness, and is the preferred panel for modern large-scale buildings and high-end spaces.

About Us
Yicheng New Materials Co., Ltd.

Since 1998, Yicheng New Materials, based in Haining, Jiaxing—an industrial hub renowned for advanced new materials and textile & decoration manufacturing in Zhejiang Province—has been dedicated to the development and manufacturing of interior and decorative building materials. We are China Aluminum Honeycomb Panel Suppliers and Custom Aluminum Honeycomb Panel OEM/ODM Factory, Company.

With a 30,000 m² manufacturing facility and 30+ production lines, we combine established manufacturing expertise with the flexibility to respond to different markets, product trends and customer needs.

Our products are exported primarily to Latin America, Africa and Europe, serving distributors, importers, contractors and project partners around the world.

But our role goes beyond manufacturing.

We believe a good supplier should help create a better business.

That is why we work closely with our partners to understand their markets, identify the right products, develop customized solutions and provide the support needed to bring products successfully to market.

From product selection and sampling to OEM/ODM, customized colors, packaging, marketing materials and mass production, we aim to make every stage of cooperation simpler, faster and more reliable.

Message Feedback
News
Aluminum Honeycomb Panel Industry knowledge

Yicheng New Materials Co., Ltd. manufactures Aluminum Honeycomb Panel for distributors, importers, contractors and project partners. Since 1998 we have built interior and decorative building materials in Haining, Jiaxing, and today our aluminum honeycomb range covers 7mm, 8mm, 9mm and 18mm sandwich panels in solid color and wood grain finishes at a standard 1220 × 2440 mm sheet size, supplied as OEM and ODM programs with custom surface treatment, color and packing.

The panel is a lightweight sandwich: upper and lower aluminum alloy skins with a PVC co-extrusion layer, bonded to an aluminum honeycomb core with a special adhesive. That construction puts the strength of aluminum together with the weather resistance and cleanability of PVC on the visible face, which is why the material suits wall cladding, suspended ceilings, partitions and long-run facade work where weight and flatness both matter.

What We Manufacture in This Range

Our aluminum honeycomb panel line is organized around two finish families that share the same core build, so a single project can combine solid color and wood grain surfaces without changing the substrate or fixing detail. Both families are produced in 7, 8, 9 and 18 mm overall thickness and 1220 × 2440 mm standard sheets, with cut-to-size and edge treatment handled as part of the order.

Solid Color Honeycomb Panel

Uniform color skins for interior walls, ceilings and feature partitions. The PVC co-extruded face resists scratching, wear and yellowing, keeps color stable and wipes clean.

Used where a single flat color must repeat across a large elevation or a multi-storey area.

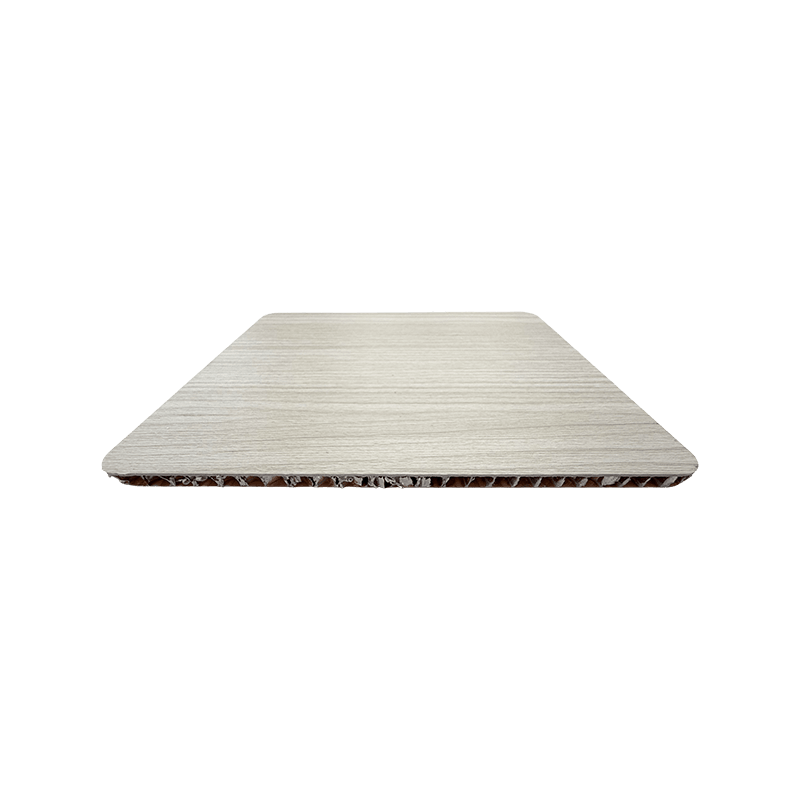

Wood Grain Honeycomb Panel

Aluminum honeycomb board with wood-effect surface, produced for wall cladding and ceilings that need a timber appearance without the weight, moisture sensitivity or maintenance of solid wood.

Grain direction and panel sequencing are confirmed at sample stage so adjacent sheets line up on site.

Custom-Made Panel Programs

OEM/ODM work on thickness, sheet size, color, texture, edge detail and packaging. Reference swatches or images are matched and approved before bulk production.

Our Products index shows the full decorative panel program this range sits within.

Thickness, Format and Where Each Build Fits

The four standard thicknesses are not a marketing ladder; they correspond to different spans, fixing methods and stiffness requirements. The table below maps the company's actual formats to their usual application, so a specification can be matched to the right build before the quotation is prepared.

Panel Thickness Standard Sheet Typical Application Selection Note
7 mm 1220 × 2440 mm Interior ceiling panels and light wall linings Lowest weight; framing and fixing spacing set the achievable span
8 mm 1220 × 2440 mm Interior wall cladding and partitions Balanced panel for large flat wall areas
9 mm 1220 × 2440 mm Feature walls, columns and wet-room wall panels More stiffness for handling and edge detail
18 mm 1220 × 2440 mm Curtain wall infill, exhibition halls, airport and rail station interiors Heaviest build for large public spaces and long spans

Because the honeycomb core is largely air, the finished panel weighs roughly one third to one fifth of a comparable traditional panel of the same thickness. That reduction in dead load feeds directly into the support structure and lifting plan, which matters most in ceiling grids and in retrofits where the existing building frame cannot be reinforced. The core also provides sound insulation and thermal separation between faces, helping against external noise and temperature conduction in public interiors.

Surface, Color and Customization Scope

The PVC co-extrusion layer is the defining feature of our panel surface. It is applied to both faces and raises scratch resistance, wear resistance, corrosion resistance and yellowing resistance compared with a bare aluminum skin, while keeping the texture fine and the face easy to clean. Color selectivity is wide, and the surface can be produced in solid colors or as a wood grain effect.

  • Color: custom shades matched to a supplied swatch, reference image or brand color, subject to sample approval.
  • Texture: smooth solid color or printed wood grain, with grain direction agreed before production.
  • Size and edge: cut-to-size panels and edge detail such as grooved or concealed fixing profiles, discussed against the fixing system.
  • Packing: export packing configured to the panel size and surface, with interleaving and edge protection arranged to protect the finished face in transit.

Our Wall Panel range places aluminum honeycomb alongside UV board, wood veneer panel, carbon crystal panel, WPC wall panel and sound absorbing panels, so a single elevation can combine materials while we hold one production schedule and one packing standard.

Installation, Fixing and Site Coordination

Aluminum honeycomb panels are installed as a dry, demountable system. Panels are fixed to a prepared substrate or a metal framing grid, and the fixing type is chosen with the application: interior wall cladding, suspended ceilings, partitions and curtain wall infill each carry different loads and different inspection requirements. Panels are light enough for two-person handling on most interior work, which reduces crane and scaffold time on upper floors.

We confirm the panel module against the site grid before production so that cut edges, joints and perimeter trims land where the installer expects them. For large elevations, we number and bundle panels in installation sequence; where a project spans several phases, we retain the approved first-batch sample and compare subsequent batches against it for appearance, color and texture.

Quality Control and Batch Consistency

Production sits inside a 30,000 m² facility with 30+ production lines and a quality team of 30+ inspectors. The control sequence for decorative panels runs from incoming raw material inspection through patrol inspection during production to finished-product testing before packing.

  • Incoming materials: resin, additives and decorative surface films are checked on arrival.
  • In-process: random sampling monitors process parameters and surface condition, with deviations corrected during the run.
  • Finished panel: bending, impact resistance, hardness, wear resistance and dimensional checks before shipment.
  • Durability: waterproof, moisture-proof, flame-retardant, anti-aging and corrosion resistance are tested so the panel performs in humid and temperature-cycling environments.
  • Batch traceability: first-batch samples are kept and every later batch is compared against them item by item.

Inspection reports or inspection photos can be provided with the shipment on request, which supports project acceptance and after-sales handling for distributors.

OEM/ODM, Packaging and Delivery Scope

Most aluminum honeycomb orders are OEM/ODM programs rather than catalogue purchases. Our customization process runs requirement confirmation, sample development, sample approval, bulk production, finished inspection and export packing. Color swatches or reference pictures are accepted for matching, and the approved sample becomes the production standard for the bulk order.

Free samples are available for evaluation, with international shipping paid by the customer; we assist with sample consolidation, freight quotation and dispatch to the nominated destination. Production capacity and export experience support both first orders and repeat programs, with annual exports of 1,500+ 40HQ containers and established distribution to Latin America, Africa and Europe.

Information We Use to Configure Your Solution

A workable quotation depends on more than a panel size. The inputs below let us propose the thickness, skin, core, finish and packing that match the application, and identify where a sample needs to be produced first.

Project Input What It Determines
Application and substrate Wall cladding, ceiling, partition or curtain wall; framing and fixing type
Panel thickness and sheet size Stiffness, span, weight and cutting plan
Finish and color reference Solid color or wood grain, color match and sample approval
Quantity and phasing Production batch planning, batch comparison and numbering
Edge detail and accessories Grooving, trim profiles and joint design
Destination and packing Export packing method, bundling and shipping documents

Frequently Asked Questions

Which thicknesses and sheet sizes does Yicheng produce?

Our aluminum honeycomb panels are produced in 7 mm, 8 mm, 9 mm and 18 mm, in solid color and wood grain finishes, at a standard 1220 × 2440 mm sheet. Cut-to-size panels, edge details and custom packing are handled as part of an OEM/ODM order.

What does the PVC co-extrusion layer add to the panel?

The co-extruded PVC layer on both aluminum skins raises scratch resistance, wear resistance, corrosion resistance and yellowing resistance, keeps the face easy to clean and gives a finer surface texture. It also widens the color options available for solid color and wood grain finishes.

Can the panel be supplied in a custom color or wood grain to match a project?

Yes. We match supplied swatches, reference images or brand colors and produce a pre-production sample for approval. Once the sample is approved, its appearance, color and quality become the standard for bulk production, and subsequent batches are compared against the retained first-batch sample.

Where are aluminum honeycomb panels typically used?

The material suits building exterior walls, indoor ceilings, partitions, curtain walls, large exhibition halls, airports and high-speed railway stations. Its low weight, flatness and sound and heat insulation make it practical for large public interiors and for projects where the building frame cannot take heavy cladding.

How do I start a sample and quotation request?

Send the application, substrate, panel thickness and sheet size, finish and color reference, quantity, project phasing and destination port. From those inputs we confirm the configuration, produce samples where needed, and prepare the quotation with export packing and shipping documents in scope.

What test documentation is available for project acceptance?

Finished panels go through bending, impact resistance, hardness, wear resistance and dimensional checks, plus waterproof, moisture-proof, flame-retardant, anti-aging and corrosion resistance testing. Inspection reports and inspection photos can be provided with the shipment on request to support acceptance and after-sales handling.

Related Products and Categories

Our portfolio also includes PVC Ceiling for applications with different operating ranges, interfaces or integration requirements.
