Yicheng New Materials Co., Ltd. manufactures Interlocking Panel - 40.6cm as a custom OEM/ODM wall and ceiling panel for distributors, importers, contractors and project partners. The 406 × 10 mm profile is a decorative PVC-based panel with a tongue-and-groove interlocking edge, produced in our Haining, Zhejiang factory for residential, hotel, office and retail interiors.
Since 1998, we have built our range around interior and decorative building materials. With a 30,000 m² facility, 30+ production lines and annual exports of more than 1,500 40HQ containers, we support both growing distributors and established project supply programmes across Latin America, Africa and Europe.
Where the 40.6cm Interlocking Panel Fits
As a Custom Interlocking Panel - 40.6cm OEM/ODM Suppliers, Factory, Company, we match product configuration to the application, operating limits, interfaces and acceptance criteria defined for each project.
The 406 mm face width gives a wider plank look than narrow ceiling boards, so the panel suits wall linings, feature walls and large ceiling runs where fewer joints and fast coverage matter. Our customers typically use it for apartment and villa refurbishment, hotel guestrooms and corridors, offices, showrooms and retail interiors.
- Wall lining: direct decorative cladding over prepared masonry, plasterboard or battened subframes.
- Ceiling: light, easy-to-handle panels for flat or framed ceiling systems.
- Fast renovation: interlocking edges allow panel-by-panel installation without removing existing finishes.
- Humid interiors: PVC-based panels are used in bathrooms, kitchens and utility areas where moisture resistance is required.
We supply this panel as part of our Interlocking Panel - 40.6cm alongside 14.5 cm and 30 cm interlocking profiles, so a single order can cover narrow and wide plank layouts.
Our Product Range in This Category

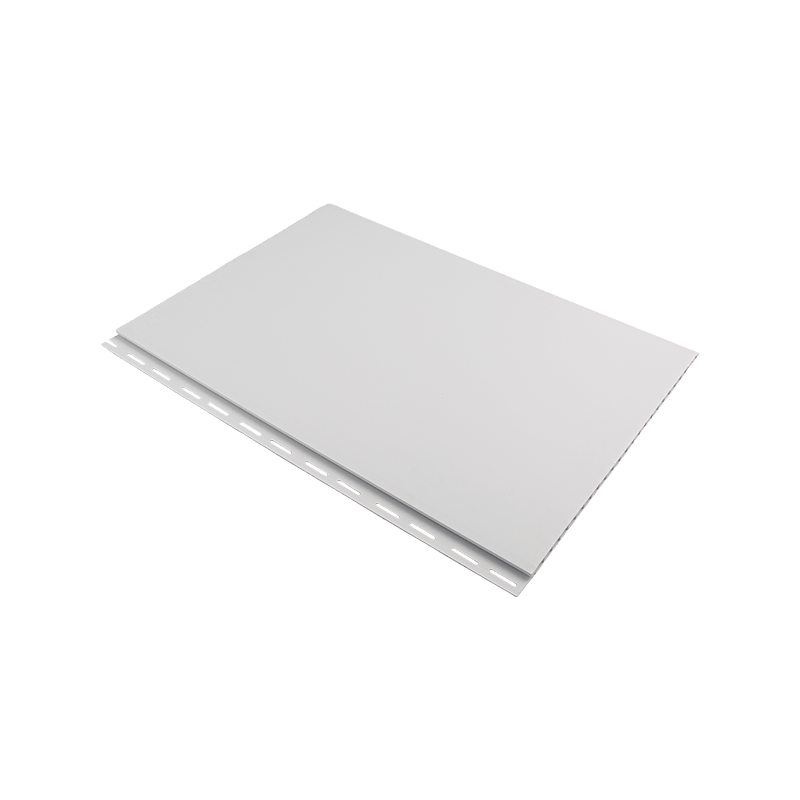

Interlocking Panel 40.6cm
Wide-plank custom panel in 406 × 10 mm format, available in matte, high-gloss, transfer-print and laminated finishes for walls and ceilings.
Interlocking Panel 14.5cm
Narrow-profile interlocking panel for tighter joint patterns, smaller rooms and ceiling applications where a finer scale is preferred.
Interlocking Panel 30cm
Mid-width interlocking panel for projects balancing coverage speed and proportional scale in residential and commercial interiors.
Matching Trims and Accessories
PVC profiles, corner lines, joint mouldings and edge trims to complete the installation around openings, corners and terminations.
The 40.6 cm format is our widest interlocking profile; narrower formats remain available where the design calls for a denser linear pattern. All three formats share the same installation logic, so a mixed specification can be supplied from one production programme. Complementary wall systems such as PVC Wall Panel - 40cm are also available for projects combining flat and interlocking wall finishes.
Materials, Construction and Specification Points
The 40.6 cm interlocking panel is produced on PVC-based profiles with a decorative surface layer. The reference format is 406 mm wide by 10 mm thick; across the interlocking range, customers can adjust size, surface treatment and color to suit a specific market or project.
| Specification Area |
What We Can Customize |
What It Affects |
| Width |
40.6 cm standard; 14.5 cm and 30 cm formats |
Joint frequency, panel count, installation speed |
| Thickness |
10 mm reference across the range |
Stiffness, edge engagement, trim depth |
| Surface |
Matte, high-gloss, transfer printing, laminated |
Visual effect, cleaning, light reflection |
| Color |
Custom color matching against swatches or reference images |
Market fit, brand identity, batch continuity |
| Packing |
OEM packaging and label options |
Container loading, retail presentation |
| Format |
Cut lengths and interlocking edge detailing to order |
Coverage, waste, site handling |
We confirm the final technical specification against an approved sample before mass production. Because the panel is a decorative surface system, substrate preparation, fixing method and room conditions determine the installed result as much as the panel itself.
OEM/ODM Configuration and Branding
Our customization workflow begins with requirement confirmation: panel type, size, thickness, surface finish, target color, quantity and application scenario. Where a project needs a specific look, color swatches or reference pictures can be used for matching, and the approved sample becomes the production standard for bulk goods.
- Color: custom color matching for distributor ranges and project palettes.
- Pattern: wood-grain and printed designs produced via transfer and lamination finishes.
- Surface: matte, high-gloss, transfer-printed or laminated options.
- Branding: OEM/ODM packaging, labels and marketing materials including photos, catalogs and specification sheets.
- Sampling: free samples for quality and market reference, with international shipping paid by the customer.
The Interlocking Panel - 40.6cm manufacturer programme is designed for orders that combine several finishes or colors in one container, which is common for distributors building a decorative panel catalogue.
Installation, Maintenance and Serviceability
Interlocking panels are installed by engaging each panel's tongue into the groove of the previous one and fixing through the edge or onto battens, depending on the substrate. Panels can be cut with standard woodworking tools, and the matching trims finish corners, openings and ceiling transitions.
- Allow panels to acclimatize in the installation area before fixing.
- Use a batten or framing system where walls are uneven or the panel spans ceiling runs.
- Leave a small expansion allowance at terminations and cover with the appropriate profile.
- Clean with a damp cloth and mild household detergent; avoid abrasive pads on high-gloss surfaces.
- Damaged panels can be replaced individually because the panels are mechanically engaged rather than bonded.
Quality Control and Batch Consistency
Incoming resin, additives and decorative films are inspected on arrival. Production runs with in-line patrol checks on process parameters and surface condition, followed by finished-product inspection before packing. For each item, we retain a first-batch sample and compare later batches against it on appearance, color and texture.
- Bending test as a key acceptance item, plus impact, hardness, wear and dimensional checks.
- Waterproof, moisture-proof, flame-retardancy, anti-aging and corrosion-resistance testing as part of the finished-product programme.
- Inspection reports or inspection photos available on request for customized orders.
- Export-standard packing with shipping documents issued to close out each customization order.
Information We Use to Configure Your Solution
To prepare a suitable interlocking panel proposal, we work from project and market data rather than a single specification number. The following inputs allow us to confirm dimensions, finishes, packing and delivery scope.
- Application: wall, ceiling or mixed use; room type and project type.
- Format: panel width and thickness required, or target coverage per piece.
- Quantity: total square meters or piece count, plus any repeat-order forecast.
- Surface and color: finish type, reference swatch, picture or color code.
- Substrate and fixing: existing wall condition, batten or direct-fix method.
- Packaging: OEM label, carton marking and mixed-container requirements.
- Documents and samples: sample timing, approval process and inspection documentation.
Related Interior Panel Systems
Projects that combine interlocking panels with other finishes can source the broader interior range from one supplier. Our PVC Ceiling range covers 18 cm to 60 cm boards for ceiling runs, while wall and feature-wall options include UV board, wood veneer, carbon crystal, WPC and sound-absorbing panels.
Frequently Asked Questions
What is the standard size of the 40.6 cm interlocking panel?
The referenced format is 406 mm × 10 mm. The 40.6 cm face width is the widest profile in our interlocking panel range, with 14.5 cm and 30 cm alternatives available for different visual scales.
Can you match a specific color or surface finish?
Yes. Color matching can be carried out from swatches or reference images, and surface options include matte, high-gloss, transfer-printed and laminated finishes. The approved sample defines the production standard for the bulk order.
Do you offer OEM and ODM supply for distributors?
We supply OEM/ODM orders with custom color, custom packaging and marketing materials. This suits distributors building their own decorative panel brand across Latin America, Africa and Europe.
Are samples available before an order?
Free samples are available for quality and market evaluation, with international shipping paid by the customer. Sample consolidation and freight quotations can be arranged for multi-item requests.
How is quality checked before shipment?
Incoming materials are inspected, production is monitored with in-line patrol checks, and finished goods pass a pre-packing inspection that includes bending, impact, hardness, wear and dimensional checks. Later batches are compared against the retained first-batch sample.
What packaging and delivery scope do you provide?
We use export-standard packing with OEM label options, and arrange shipment with the required documents to complete the order. Delivery scope is confirmed during configuration based on quantity, packing format and destination.
