Yicheng New Materials Co., Ltd. manufactures Sound Absorbing Panels as part of our wall panel range, combining a perforated, grooved or flocked decorative face with sound-absorbing cotton infill. We produce these panels in straight bar grille and modular formats for meeting rooms, classrooms, cinemas, KTV rooms, concert halls, offices and hospitals, and supply them to distributors, importers, contractors and project partners across Latin America, Africa and Europe.
Since 1998 we have operated from Haining, Jiaxing in Zhejiang Province, with a 30,000 m² facility and more than 30 production lines. The sound absorbing range sits alongside our Wall Panel family, so a single interior package can combine acoustic wall treatments with matching decorative surfaces, trims and accessories.
What We Manufacture in This Range
As a Custom Sound Absorbing Panels OEM/ODM Suppliers, Factory, Company, we match product configuration to the application, operating limits, interfaces and acceptance criteria defined for each project.
Our sound absorbing panels use a decorative face that is perforated, slotted or flocked to let sound reach the absorbent core. The core carries sound-absorbing cotton, so the panel reduces echo and reverberation while functioning as a finished wall surface. Faces are available in wood grain, stone grain such as marble pattern, and solid colors, which lets the acoustic treatment follow the interior design rather than sit apart from it.

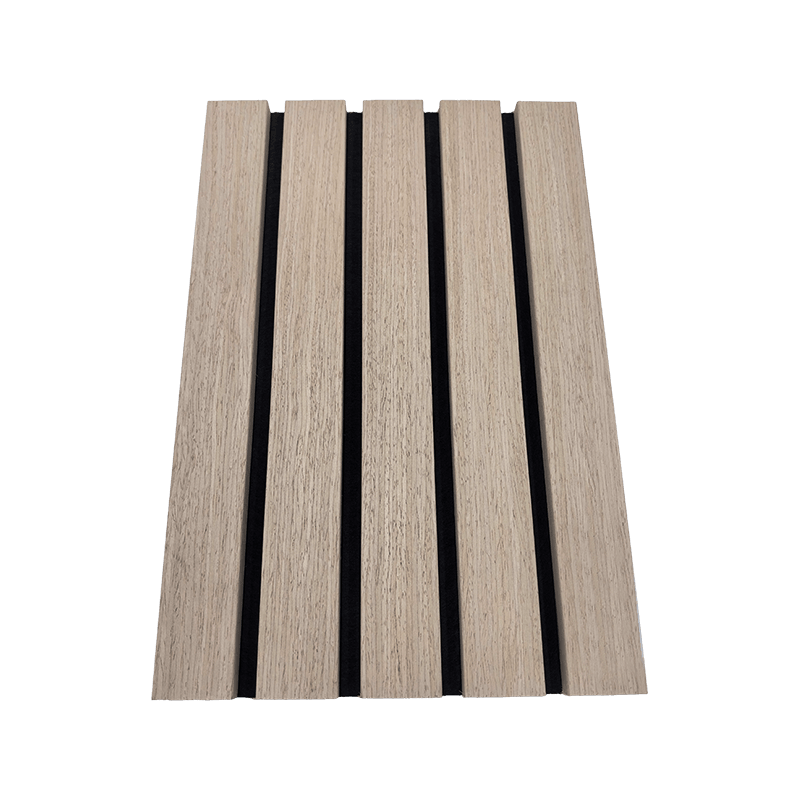

Straight Bar Grille, 60 × 244 cm
Full-height grille panel at 2.1 cm and 1.8 cm thickness for continuous wall runs, lobbies and feature walls where vertical rhythm matters.
Straight Bar Grille, 28 × 244 cm
A narrower grille module for column faces, door reveals, partial walls and layouts where module width must follow a structural grid.

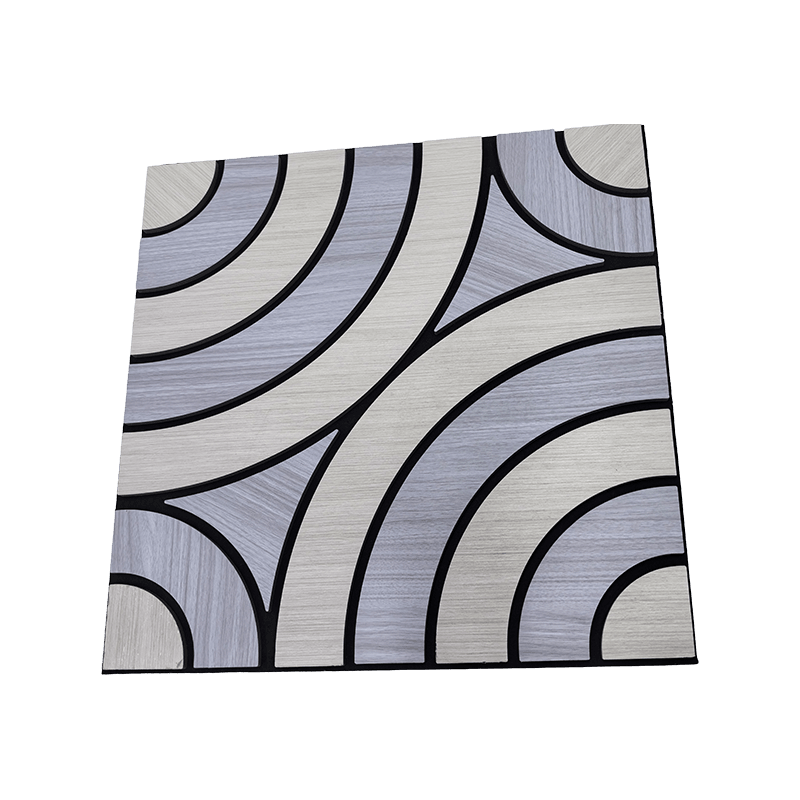

Modular Panels, 60 × 60 cm
Square modules at 2.1 cm and 1.8 cm thickness for grid ceilings, repeated wall patterns and rooms where individual panels may need replacing.
Marble-Pattern Grille Finish
A stone-look face for reception areas, hospitality interiors and commercial fit-outs that call for acoustic performance in a polished finish.
Matching the Panel Format to the Space
The choice between grille and modular formats is mainly a question of wall geometry and how the room will be maintained. Tall continuous walls usually suit the 244 cm grille lengths because fewer horizontal joints interrupt the face. Grid ceilings, columns and partitioned rooms are easier to lay out with 60 × 60 cm modules, and a damaged module can be swapped without dismantling a whole elevation.
| Panel Format |
Size and Thickness |
Typical Application Fit |
| Straight bar grille, long |
60 × 244 cm; 2.1 cm and 1.8 cm |
Auditoria, cinemas, concert halls, large meeting rooms with full-height walls |
| Straight bar grille, narrow |
28 × 244 cm; 2.1 cm and 1.8 cm |
Columns, corridors, door reveals, feature strips between other wall panels |
| Modular square |
60 × 60 cm; 2.1 cm and 1.8 cm |
Offices, classrooms, KTV rooms, hospital waiting areas, grid ceiling treatments |
| Marble-pattern grille |
60 × 244 cm; 2.1 cm and 1.8 cm |
Reception, hospitality, retail and commercial interiors with a stone-look scheme |
Acoustic and Physical Specifications We Work To
Acoustic performance depends on the perforation or groove pattern, the thickness and density of the absorbing cotton, the cavity depth behind the panel, and how much of the room surface is covered. We confirm the intended absorption level during configuration so the perforation pattern, infill and mounting detail are selected together rather than as separate items.
- Faces: wood grain, stone grain and marble pattern, or solid colors matched to a reference sample or swatch.
- Core: sound-absorbing cotton behind a perforated, slotted or flocked face.
- Formats: 60 × 244 cm, 28 × 244 cm and 60 × 60 cm, at 2.1 cm and 1.8 cm thickness.
- Handling and installation: easy to install as a decorative wall or ceiling finish, combining acoustic treatment with the finished surface.
- Environmental and safety properties: fireproof, moisture-proof, environmentally friendly and non-toxic, resistant to deformation.
OEM/ODM Configuration for Distributors and Projects
As a China Sound Absorbing Panels OEM/ODM supplier, we build the specification around the target market. Distributors can request their own colors, packaging and brand presentation; project partners can submit a room schedule, a design reference or a competitor sample and have the panel developed to match. The customization process moves through requirement confirmation, sample development, sample approval, bulk production, inspection, and export packing and shipment.
Customization options we support across the panel range:
- Surface treatment, color and pattern, including wood grain and stone-look faces
- Perforation or groove pattern and sound-absorbing infill specification
- Panel dimension and thickness within the production capability
- OEM/ODM branding, custom packaging and marketing materials
For larger interior packages, the acoustic panels can be quoted together with related wall and ceiling systems, such as WPC Wall Panel, UV Board and PVC Ceiling, so finishes, trims and delivery can be coordinated in one production plan.
Quality Control and Acceptance
Raw materials, functional additives and decorative surface films are inspected on arrival. During production, patrol inspection checks process parameters and surface condition, and finished goods pass a standard inspection procedure before delivery that includes bending resistance, impact resistance, hardness, wear resistance and dimensional checks. We retain the first production batch as a reference and compare later batches against it for appearance, color and texture, which keeps repeat orders consistent.
- Finished products are tested for waterproofing, moisture resistance, flame retardancy, anti-aging and corrosion resistance.
- Inspection reports or photographs can be provided on request, and approval samples become the production standard.
- Export-standard packing is used, with shipping documents prepared for each order.
Installation, Maintenance and Serviceability
The panels are installed as a finished wall or ceiling layer over a suitable substrate. Because the acoustic effect depends on the cavity behind the panel, the fixing method and cavity depth should be settled before the layout is finalized. Our accessories range covers the profiles and trims needed at edges, corners and junctions.
- Keep spare modules from the same production batch for future replacement, especially with 60 × 60 cm layouts.
- Clean the decorative face with a soft cloth and avoid saturating perforated areas or the absorbent infill.
- Record the approved sample reference so replacement panels match the original shade and texture.
Information We Use to Configure Your Solution
A sound absorbing panel proposal is prepared from the room and the market rather than from a size list alone. The following inputs let us confirm the panel format, surface, infill and packing before quotation.
| Input |
What It Determines |
| Room type, dimensions and treated surface area |
Panel quantity, coverage ratio and whether grille or modular layout is more suitable |
| Noise source and acoustic target |
Perforation or groove pattern, cotton specification and cavity depth |
| Color, pattern or reference sample |
Decorative face selection and color matching |
| Panel size, thickness and mounting detail |
Production scope, edge treatment and accessory list |
| Order quantity, packing and branding requirements |
OEM/ODM packing format, carton marking and delivery plan |
Frequently Asked Questions
Do you supply sound absorbing panels as an OEM/ODM manufacturer?
Yes. We produce custom sound absorbing panels under OEM/ODM arrangements, including customer colors, surface patterns, packaging and branding. Samples are developed and approved before bulk production, and the approved sample becomes the production standard.
Which sizes and thicknesses are available?
The range includes 60 × 244 cm and 28 × 244 cm straight bar grille panels and 60 × 60 cm modular panels, each at 2.1 cm and 1.8 cm thickness. Other dimensions and surface treatments can be discussed during configuration.
How is the sound absorption level set?
It is set by the combination of perforation or groove pattern, sound-absorbing cotton specification and the cavity behind the panel. We confirm the intended absorption level with the room application so the panel construction and mounting detail are matched.
Which finishes can the decorative face have?
Wood grain, stone grain including marble pattern, and solid colors are available, with perforated, grooved or flocked faces. Color and pattern can follow a reference sample or swatch supplied with the enquiry.
Are the panels suitable for humid or fire-sensitive interiors?
The panels are described as fireproof, moisture-proof, environmentally friendly and non-toxic, and finished products are tested for waterproofing, flame retardancy, anti-aging and corrosion resistance. Specific compliance requirements should be stated with the project so the applicable evidence can be prepared.
Can acoustic panels be combined with other wall and ceiling products?
Yes. Sound absorbing panels are part of our wall panel range and can be quoted with matching Products from the wider interior range, including profiles, trims and ceiling systems, so finishes and delivery are coordinated.
