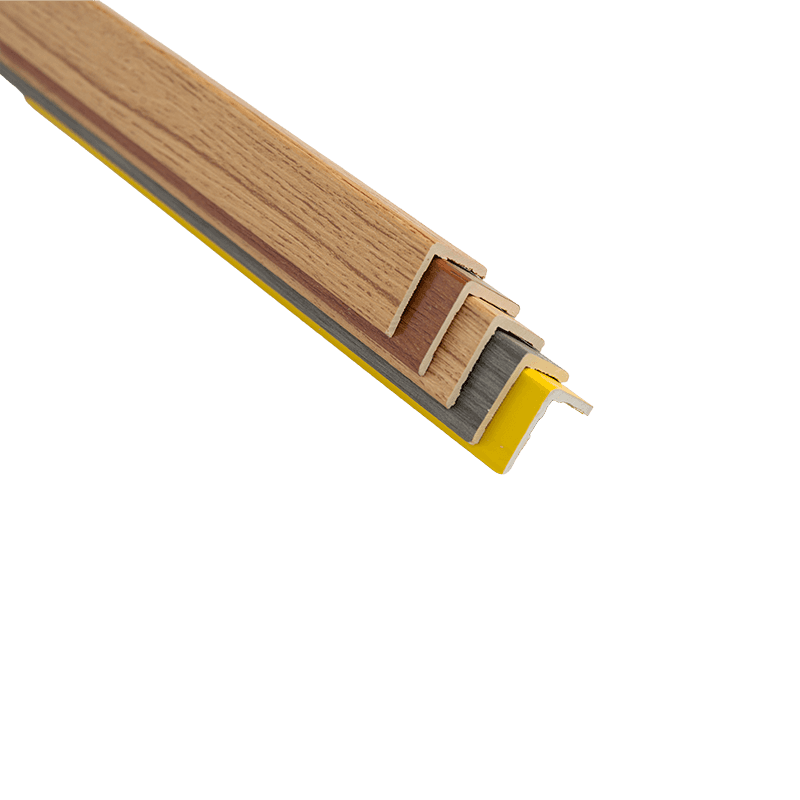

25*25mm Stone-Plastic Composite (SPC) Right-Angle Moldings

Key Advantages

• High density and hardness: Density 1.8–2.0 G/cm³, Rockwell hardness ≥85 (R scale), Barcol hardness ≥45. Impact resistance: no cracks or indentations from 500g steel ball dropped from 500mm.
• Low water absorption: ≤0.2%, Comparable to natural granite. Thickness expansion ≤0.1% After 30 days at 90% relative humidity.
• Flame retardancy: Oxygen index ≥32%. Vertical burn test afterflame time ≤5 seconds. No flaming drip ignition of cotton. Suitable for public spaces with fire safety requirements.
• Surface durability: Lamination thickness 0.15–0.25mm (PET or PVC film). Scratch resistance ≥2H (pencil hardness). No delamination after 500 steel wool rub cycles.
• Environmental parameters: Formaldehyde emission ≤0.05 Mg/L (desiccator method). No detectable benzene, toluene, xylene, or heavy metals (Pb, Cd, Hg, CrVI).

Product Specifications

Application Scenarios

• Interior wall corner protection (residential, office, hospital, school corridors)
• Wall panel system edge finishing (SPC wall panels, PVC panels, integrated wall panels)
• Ceiling corner and cove trim
• Interior and exterior door casing and window trim edge wrapping
• Commercial space wall corner protection and decoration (shopping malls, hotels, restaurants)
• Kitchen, bathroom dry area, and balcony wall edge finishing (high-moisture areas)
• Wall and column corner impact protection in industrial plants and underground parking garages

Frequently Asked Questions and Precautions

Q: Can SPC mouldings be used outdoors?
A: Laminated or heat-transferred surfaces may fade or delaminate under prolonged UV exposure (>6 months direct sunlight). For outdoor use, select UV-stabilized lamination or powder-coated finishes and avoid rain-exposed vertical surfaces. Standard product is recommended for indoor and covered semi-outdoor environments.

Q: Is edge chipping prone during cutting?
A: SPC has higher hardness but lower toughness than pure PVC. Use tungsten carbide saw blades (≥80 teeth) with moderate cutting speed (≤3000 rpm) and steady feed. Light chamfering (0.3mm) with 200-grit sandpaper reduces chipping risk.

Q: How to clean stubborn surface stains?
A: The laminated surface (rigid PET or PVC) has good chemical resistance. Routine stains: neutral cleaner with soft cloth. Ink or permanent marker: apply 75% alcohol locally for ≤30 seconds, then wipe dry. Avoid abrasive pads or steel wool.

Q: Can it be used on curved walls?
A: SPC flexural modulus ranges from 4000–6000 MPa and is not bendable at room temperature. For small-radius curves (radius ≥1.5M), kerf-cut the back (1mm depth, 10–15mm spacing) before bending, or use flexible alternatives.

Precautions

• Substrate must be flat (≤2mm over 2m), dry, and dust-free before installation. Use a laser level for baseline alignment.
• Wear a dust mask and safety goggles during cutting. SPC dust is mildly irritating. Cut outdoors or in well-ventilated areas.
• For exterior or semi-outdoor installations, seal ends and joints with weather-resistant silicone sealant to prevent moisture ingress behind the moulding.
• Avoid direct contact with polyurethane foam sealants, as expansion pressure may displace or deform the moulding.
• Store horizontally on rigid supports with stack height ≤1.2M to prevent bending from prolonged pressure.
• For winter installation (ambient temperature <5°C), adhesive curing time increases. Use low-temperature structural adhesive and extend fixing time to 48 hours.
