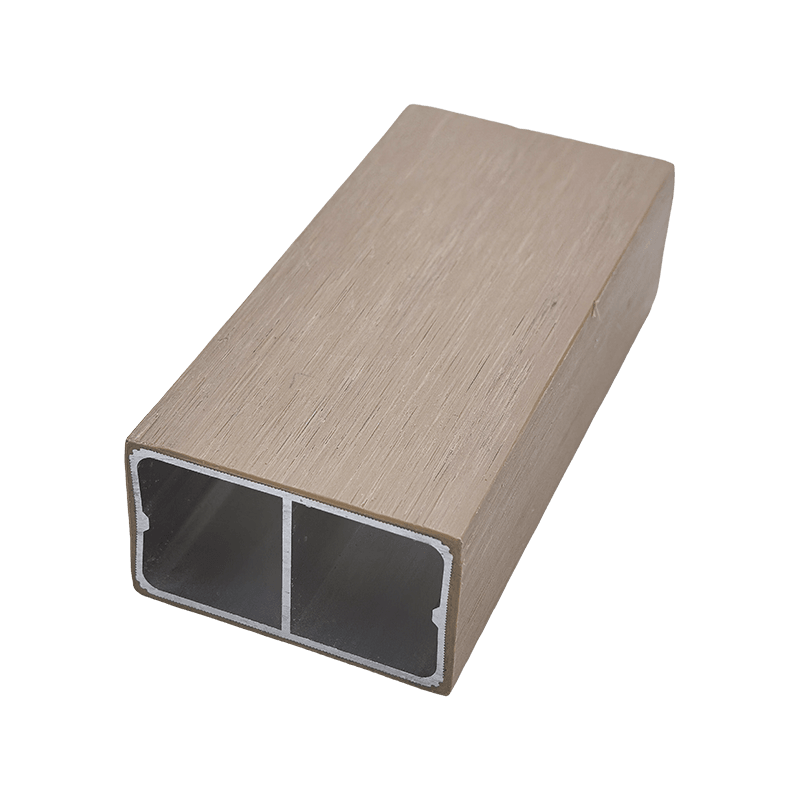

30*50mm Double-port Outdoor Aluminum Plastic Square Tube

Key Advantages

• 30×50mm dimensions: Compact, moderate size suitable for small to medium spaces
• Double-port slot structure: Symmetrical slots on both sides for convenient clip installation
• Uniform wall thickness: Consistent thickness across the profile cross-section for structural stability
• Good flexibility: Material resists bending during cutting and installation
• Water and rust resistance: Aluminum alloy substrate does not rust; Coated surface provides protection
• Abrasion and durability: High surface hardness resists daily scratching
• Easy cleaning: Wipe with water or neutral cleaner
• Convenient installation: Clip-in system requires no complex tools

Product Features

Application Scenarios

• Residential ceiling features (living room, bedroom, study partial ceiling grilles)
• Corridor grilles (residential hallways, apartment passage ceilings)
• Small retail ceilings (clothing stores, beauty salons, convenience store ceilings)
• Entryway partitions (entrance space ceiling grille decoration)
• Minimalist commercial trim (offices, cafes, studios)
• Balcony ceilings (enclosed balcony ceiling grilles)

Frequently Asked Questions

Q1: What spaces are suitable for the 30×50mm size?
This compact size is suitable for small to medium spaces with ceiling heights of 2.6M-3.0M, such as residential partial ceilings, small retail ceilings, and corridor grilles. The smaller tube size provides higher grille density with finer visual detail.

Q2: What are the main differences between double-port and single-port square tubes?
Double-port tubes have symmetrical slots on both sides of the rectangular cross-section, allowing clips to be installed from either side for higher installation flexibility and easier alignment between adjacent tubes with more precise gap control. Single-port tubes have a slot only on one side.

Q3: How are the square tubes installed?
Install using clip-in suspension: install hanger rods and light-gauge steel framing on the ceiling. Insert dedicated clips into the double-port slots, then secure clips to the framing. Square tube spacing depends on design requirements (typically 30-100mm). Compatible with wood or metal framing.

Q4: Can the product be used in humid environments (bathrooms, balconies)?
Yes. Aluminum alloy does not absorb water or rust, and the coated surface provides additional moisture protection. Suitable for ceiling grilles in humid environments such as bathrooms and balconies.

Q5: Does the product surface require additional coating?
No. The product is factory-finished with anodized or powder coating and is ready to install. For color changes, use metal-specific paints.

Q6: How are the square tubes cleaned and maintained?
Routine cleaning uses a feather duster or dry cloth. For stubborn stains, use a neutral cleaner with a soft cloth. Avoid steel wool pads or acid/alkaline cleaners to prevent coating damage.

Precautions

• Verify that framing is level and hanger rods are vertical before installation; Adjacent framing height difference not exceeding 2mm per 2 meters
• Storage requirements: Store flat on dry, level ground with stack height not exceeding 1 meter; Avoid heavy pressure that may cause deformation
• Use aluminum-specific saw blades (tooth spacing ≤ 3mm, negative rake angle) when cutting; Wear safety goggles, hearing protection, and gloves. Remove burrs with a file after cutting
• Handle carefully during transport and installation to avoid surface scratches or end deformation from impacts
• When installing clips into double-port slots, ensure clips are fully seated and fasteners are tightened to prevent loosening
• After installation, verify overall grille flatness with a level
• Inspect color consistency across multiple batches before large-scale installation
• Avoid cleaning coated surfaces with strong acids, strong alkalis, or organic solvents
• For long continuous runs exceeding 4 meters, install expansion gaps (3-5mm clearance) to accommodate thermal expansion and contraction
• Wear gloves during installation to prevent cuts from aluminum edges
