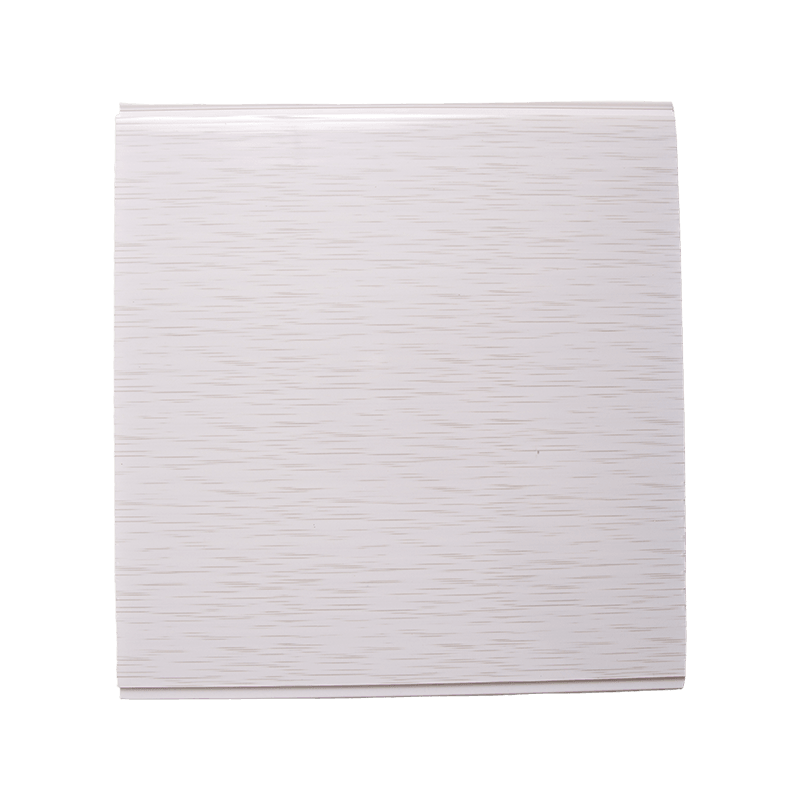

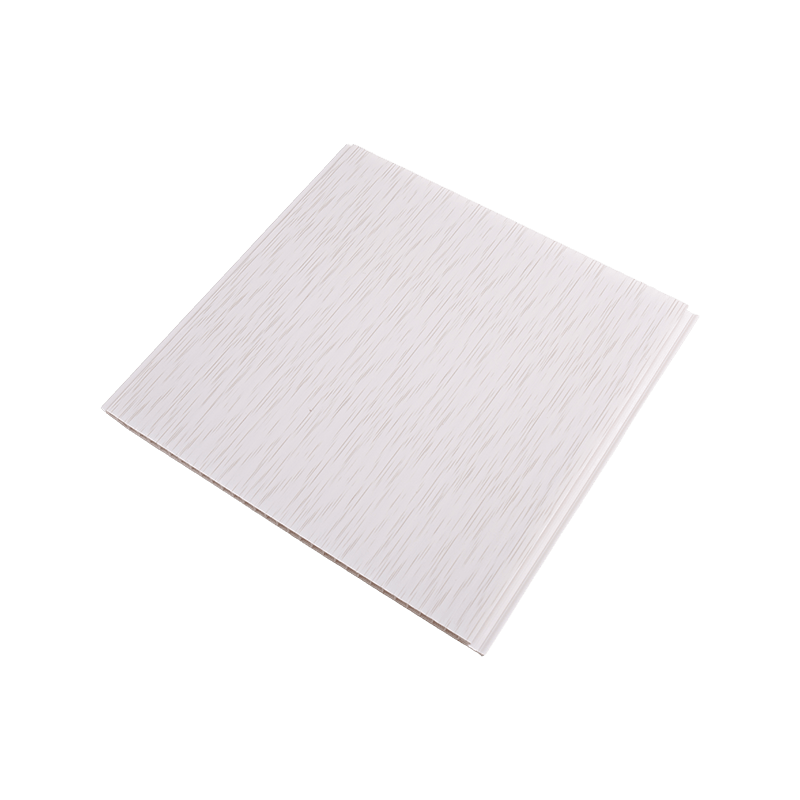

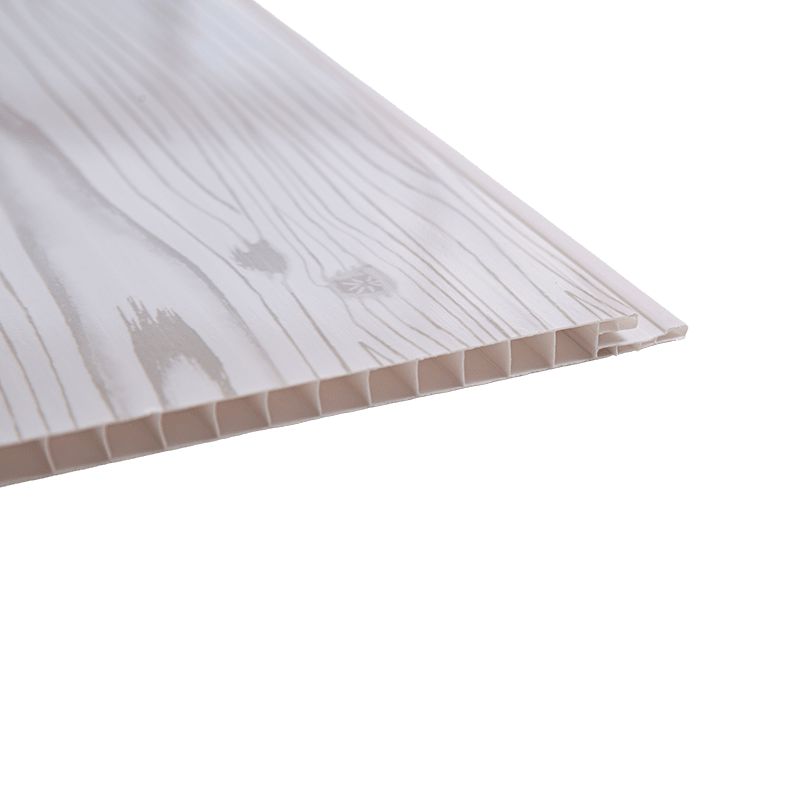

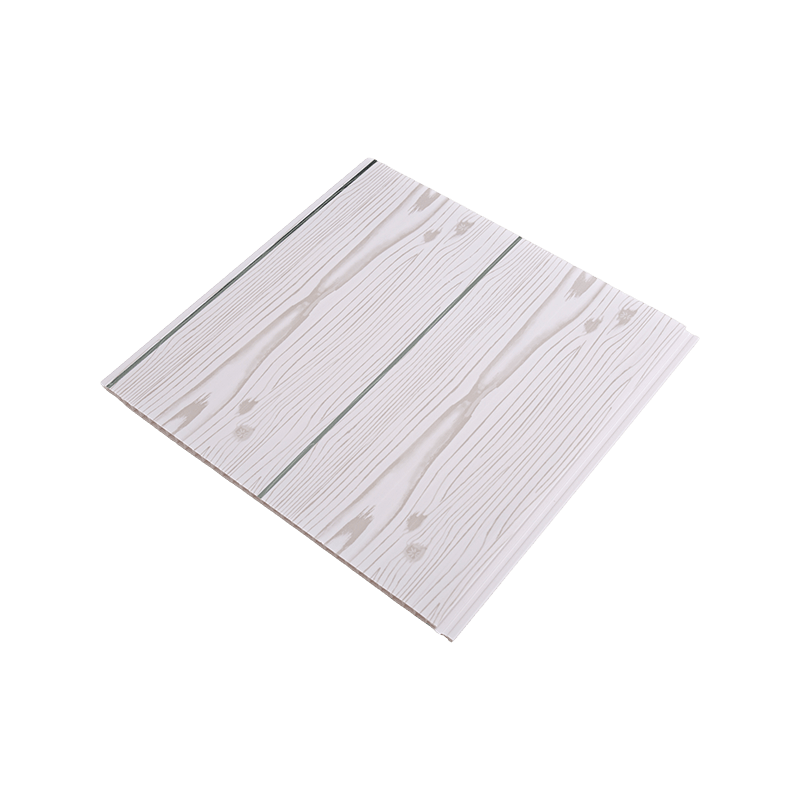

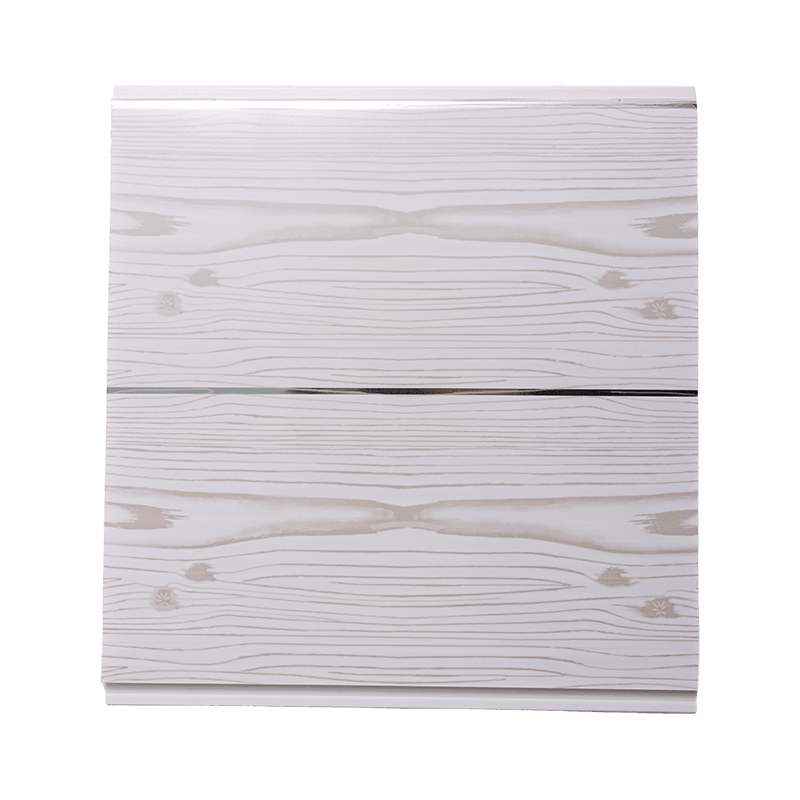

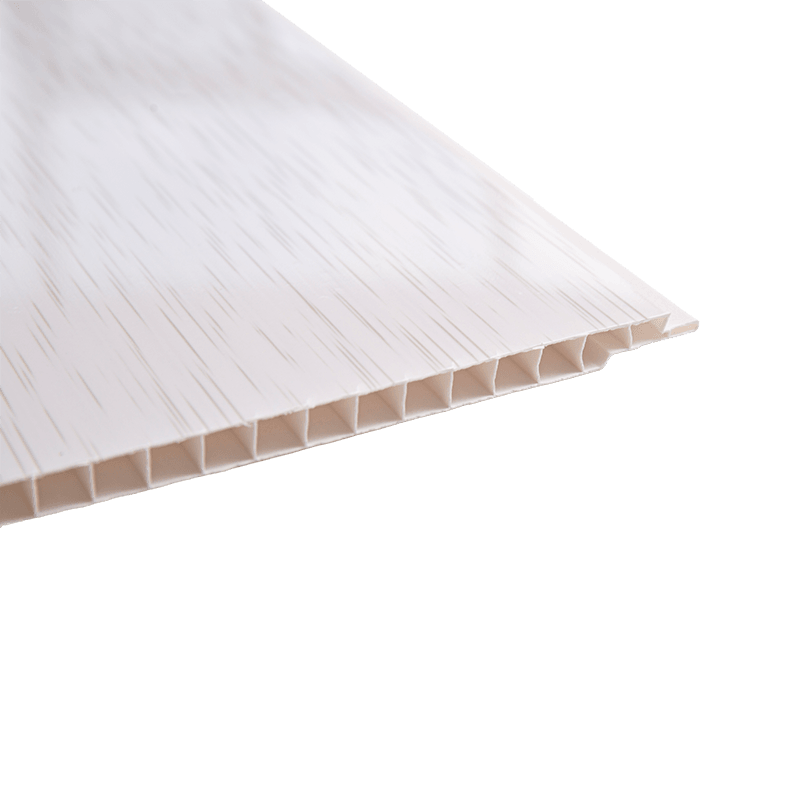

300*9mm PVC Flat Ceiling, PVC Roof Ceiling

Key Advantages

• Surface density of 3.2kg/m² provides clear reference for transportation and installation load calculations
• 300mm wide format: Reduces the number of seams per square meter by 40% compared to 200mm width products and by 25% compared to 250mm width products
• 9mm thickness: Section modulus significantly higher than standard thickness panels; flexural stiffness approximately 5.8 times that of 5mm panels, 3.4 times that of 6mm panels, and 2.1 times that of 7mm panels
• Clip-in joint system: Requires no self-tapping screws or adhesives during installation
• Dense surface structure: Resists liquid and dust penetration, simplifying cleaning operations

Product Features

Application Scenarios

• Residential wet areas (kitchens, bathrooms, balconies, corridors, basements)
• Residential dry areas (living rooms, bedrooms, dining rooms, full-house ceilings)
• Commercial spaces (retail stores, supermarkets, beauty salons, clothing shops, showrooms)
• Office spaces (office buildings, open-plan areas, meeting rooms, reception areas)
• Hospitality (hotel guest rooms, hostel common areas, apartments)

Frequently Asked Questions and Precautions

Q1: How does the 300mm width compare to 200mm and 250mm widths in installation efficiency?
Panels required per square meter: 5 panels/m² for 200mm width, 4 panels/m² for 250mm width, and 3.33 panels/m² for 300mm width. The 300mm specification reduces the number of joining operations by approximately 1.7 per square meter and reduces total seam length by approximately 40% (compared to 200mm width), making it suitable for large-area continuous ceiling installations.

Q2: What are the practical differences between 9mm thickness and 7mm or 8.5mm thickness?
The 9mm thickness provides flexural stiffness approximately 2.1 times that of 7mm and 1.3 times that of 8.5mm. Under identical framework spacing, the 9mm panel exhibits significantly lower deflection than thinner panels. It is suitable for applications requiring wider framework spacing (700-800mm), access for maintenance, or spaces expected to bear higher loads.

Q3: What is the recommended framework spacing?
For 9mm thickness, recommended framework spacing does not exceed 800mm. Specific values depend on installation orientation and expected loads. For the 300mm panel width, framework should be oriented perpendicular to the panel length. Refer to product test reports or manufacturer installation specifications before installation.

Q4: Does the surface density of 3.2kg/m² increase installation difficulty?
The surface density is 3.2kg/m². A single 300mm wide panel of standard length weighs more than thinner panels. Two-person handling is recommended, and temporary supports should be used during installation. The ceiling framework system must be load-rated for this surface density to ensure structural safety.

Q5: Does the 9mm thickness increase cutting difficulty?
The 9mm thickness can be cut using fine-tooth woodworking saw blades (tooth spacing ≤ 3mm) or electric jigsaw tools with minimum power rating of 700W. Cutting resistance is significantly higher compared to thinner panels; power tools are recommended along with protective equipment. Use auxiliary support stands during cutting to prevent cracking due to overhang.

Q6: Are there special storage requirements for thick, wide panels?
Panels must be stored flat on dry, hard ground with stack height not exceeding 1 meter. Edge-on storage is strictly prohibited. The combination of 300mm width and 9mm thickness results in significant panel weight, making edge-on storage highly likely to cause permanent bending deformation. Place wooden spacers under bottom-layer panels to facilitate forklift handling.

Precautions:

• Verify substrate flatness before installation: height difference ≤ 3mm when measured with a 2-meter straightedge; framework system must be reinforced according to load requirements
• Storage requirements: Store flat on dry ground with stack height not exceeding 1 meter; edge-on storage is strictly prohibited. Place wooden spacers under bottom layer at intervals not exceeding 500mm
• Use fine-tooth saw blades (tooth spacing ≤ 3mm) when cutting; power tools are recommended. Clean PVC debris after cutting
• For high-humidity environments such as bathrooms and basements, combine with exhaust ventilation and dehumidification systems to reduce condensation accumulation on the panel back surface
• Inspect color consistency across multiple batches before large-scale installation to ensure no visible color difference
• Avoid cleaning with solvents containing acetone, benzene, or strong alkaline agents
• The absolute thermal expansion of 300mm wide panels is substantial. For large-area installations (exceeding 50m²), reserve expansion gaps every 8 meters
• When installation ambient temperature is below 5°C, PVC material toughness decreases; cutting operations are not permitted. Allow panels to acclimate at temperatures above 15°C for 24 hours before installation
• If access panels are required within the ceiling, reinforce the surrounding framework to prevent localized deformation
