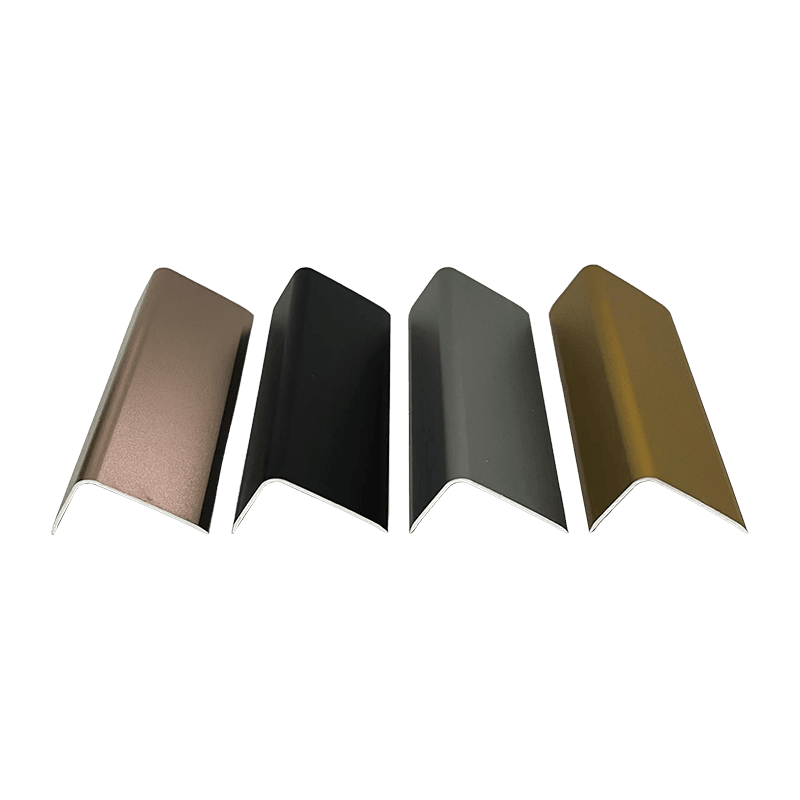

20*30*1mm Aluminum Alloy Corner Molding

Key Advantages

• Unequal leg design: 20mm and 30mm leg length differential accommodates height differences of 5–15mm between adjoining surfaces. Solves fitment issues where equal-leg angles cannot conform to irregular or stepped conditions.
• Structural strength: 1mm wall thickness combined with unequal leg geometry provides compressive load capacity ≥800N (measured along 30mm leg, vertical loading, deformation ≤1mm).
• Rust resistance and cleanability: Anodized layer thickness ≥8μm with non-porous surface. Routine dust removed with damp cloth without water spotting.
• Fabrication compatibility: Cuttable with hacksaw or aluminum-specific saw blades leaving clean edges. Compatible with self-tapping screws, brad nails, or neutral-cure structural adhesive.
• Dimensional stability: Angle tolerance 90° ± 0.5°. Leg length tolerance ±0.2mm. Consistent batch-to-batch dimensions.

Product Specifications

Application Scenarios

• Stepped transition between wall panels (10–15mm thickness) and gypsum board ceilings
• Height-differential connections between different wall materials (e.G., Tile to painted wall, wood veneer to wallpaper) due to substrate thickness variations
• Irregular casing wrapping for door frames against non-standard wall thicknesses
• Transitional covering between windowsill side surfaces and non-perpendicular wall intersections
• Custom engineered edge finishing for elevator casings and renovation trim profiles
• Corner finishing in retrofit projects with thickness inconsistencies between new and existing materials

Frequently Asked Questions and Precautions

Q: How to determine which leg (20mm or 30mm) should cover the higher surface?
A: General principle: the longer leg (30mm) covers the higher surface; The shorter leg (20mm) covers the lower surface. Example: ceiling finished surface is 12mm higher than wall panel surface — use 30mm leg against the ceiling vertical side and 20mm leg over the wall panel face. Measure the actual height difference before installation. Recommended maximum difference ≤15mm.

Q: Can this unequal-leg profile be used on standard 90° wall corners?
A: Yes, but the unequal design results in differing coverage widths on each side. Unless a specific asymmetric decorative requirement exists, standard equal-leg corners (e.G., 15×15mm or 20×20mm) are recommended for symmetrical applications.

Q: How to handle gaps after installation?
A: If substrate unevenness creates gaps >0.5mm, increase adhesive thickness on the profile back (up to 2mm maximum) or perform localized leveling on the substrate. For larger gaps, apply a matching color paintable or colored caulk for secondary edge sealing.

Precautions

• Use a level to check flatness and height differential of both substrate surfaces before installation. If the differential falls outside the 5–15mm range, select a different profile or add auxiliary shims.
• Deburr cut ends with fine sandpaper (200–400 grit) to avoid scratching adjacent finished surfaces.
• For humid environments (bathrooms, balconies), apply neutral cure mold-resistant sealant at both ends and joints to prevent moisture migration behind the profile.
• Do not use steel wool or abrasive cleaning powders for surface cleaning, as these may damage the anodized layer. Use neutral cleaner with a soft cloth.
• Store horizontally on dry wooden supports. Avoid heavy stacking. Stack height ≤1.5M.
