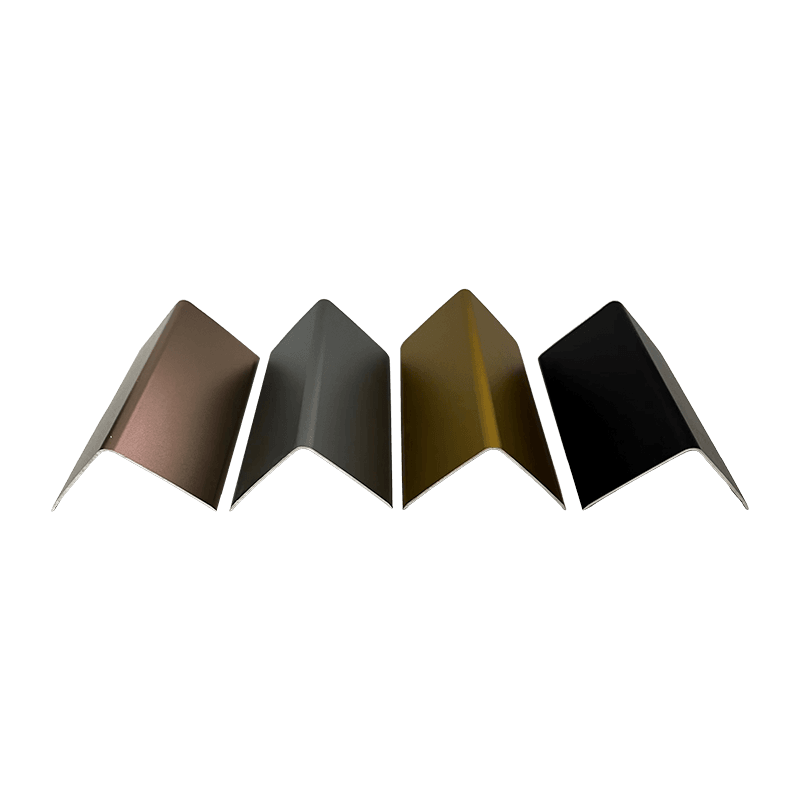

40*40*0.8mm Aluminum Alloy Corner Molding

Key Advantages

• Coverage width: 40mm × 40mm flange width covers wider corner areas and uneven substrate edges, reducing exposed filler or leveling compound.
• Bending resistance: With 0.8mm wall thickness combined with 40mm flange width, the section exhibits higher moment of inertia. Deflection ≤2 mm under 500g center load over 2.5M span.
• Environmental durability: Xenon arc weathering test 500 hours with color difference ΔE ≤2 (powder-coated version). Neutral salt spray test ≥200 hours without corrosion. Suitable for full outdoor exposure.
• Impact resistance: No visible cracking or permanent indentation after 1kg hammer dropped from 500mm height onto profile face (tested per GB/T 5237 methodology).
• Visual consistency: Flange flatness deviation ≤0.3mm/100mm. Uniform light reflection with no noticeable waviness after installation.

Product Specifications

Application Scenarios

• Exterior column corner wrapping for villas and custom residential buildings
• Wall and pillar corner protection in hotel lobbies, shopping center atriums, and exhibition spaces
• Large-area wall panel and stone cladding corner transitions
• Corner transitions for modern architectural facade decorative lines
• Wall and column corner impact protection in industrial plants and underground parking garages
• Edge covering for large lightboxes and display stand geometric corners

Frequently Asked Questions and Precautions

Q: Is 0.8mm wall thickness prone to deformation?
A: For a 40mm flange width, 0.8mm represents an optimized value. The profile incorporates reinforced bending geometry. Bending stiffness along length measures ≥50 N/m. Under normal installation and use (excluding concentrated heavy impacts), shape is maintained. Not recommended for areas subject to frequent lateral impact, such as forklift passages — use profiles with wall thickness ≥1.5mm in such applications.

Q: Will powder coating peel off after outdoor installation?
A: Powder coating achieves 0 rating in cross-cut adhesion test (completely smooth cut edges, no detachment). When using screws, employ countersunk head screws with heads no higher than the profile surface to avoid lifting the coating.

Q: How to achieve 45° miter joints?
A: Use a miter saw with an aluminum-specific carbide blade set to 45°. Apply anti-rust primer (or matching touch-up paint) to cut ends. Use fast-curing metal epoxy adhesive at the joint. Align both sections within the same plane with deviation ≤0.5mm.

Precautions

For outdoor installation, seal the contact line between the profile back and wall with weather-resistant silicone sealant to prevent moisture ingress.

Apply anti-rust treatment (clear anti-rust paint or matching touch-up paint) to cut end faces, especially in coastal high-salt spray environments.

For surface cleaning, avoid chlorine bleach or strong acids/alkalis (e.G., Dilute hydrochloric acid, sodium hydroxide solution). Use neutral cleaners (pH 6–8) with a soft cloth.

Store horizontally on dry, flat ground with soft separators between profiles. Avoid outdoor stacking or direct contact with cement, lime, or alkaline materials. Stack height ≤1.2M.
