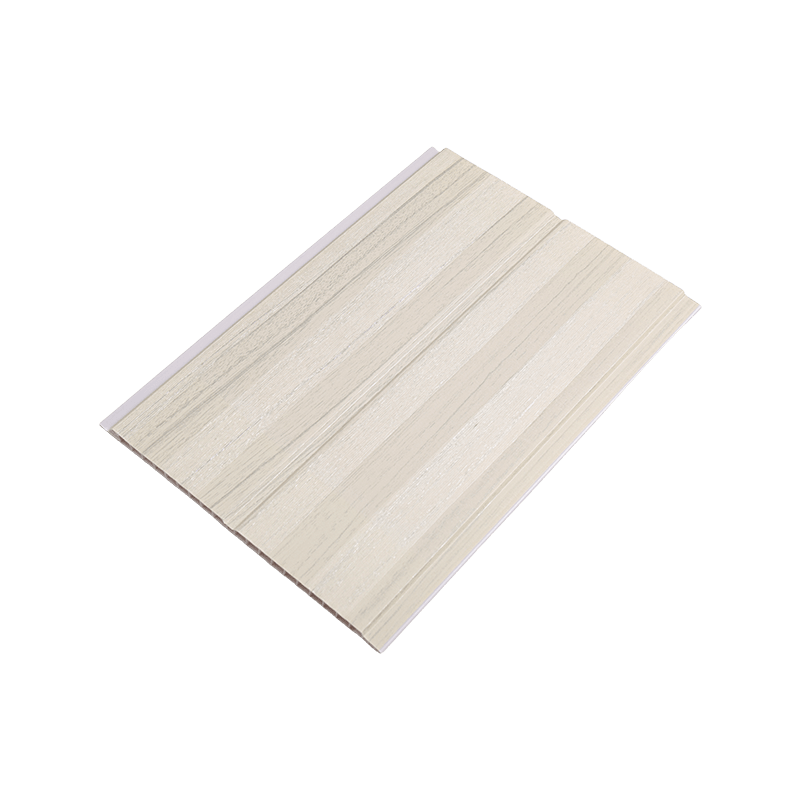

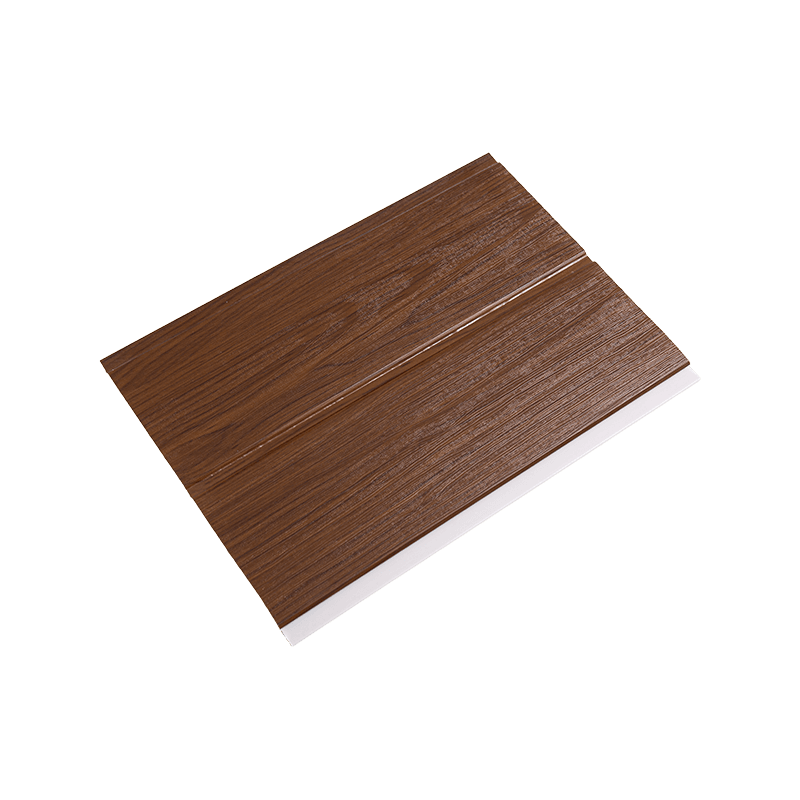

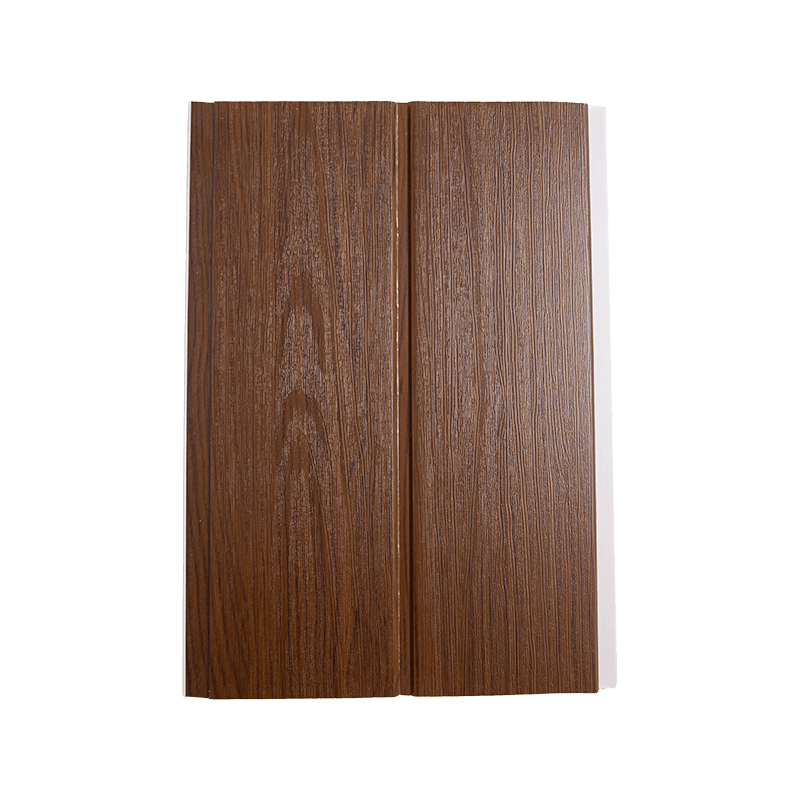

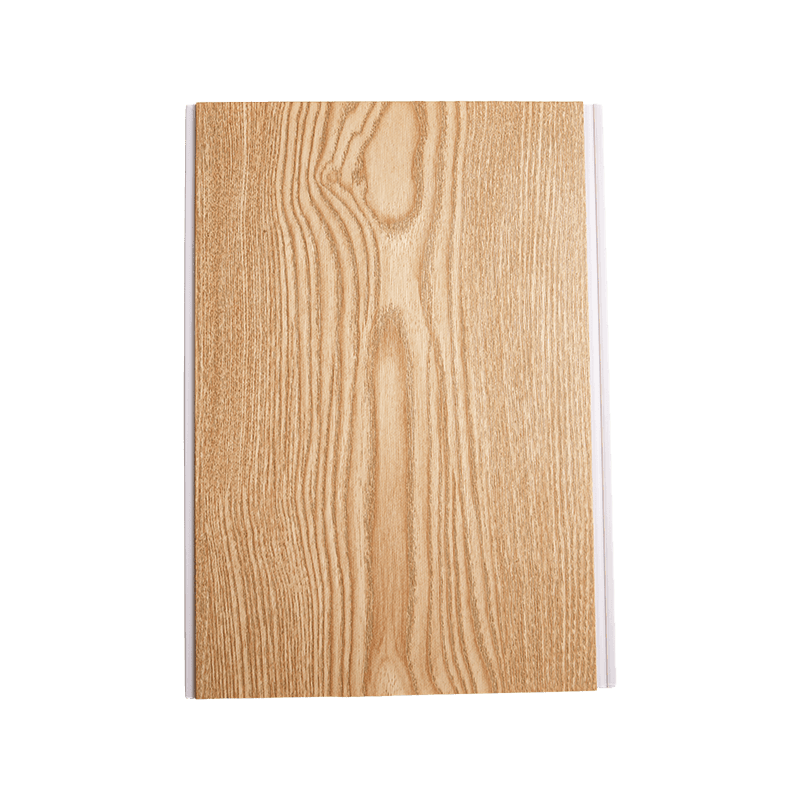

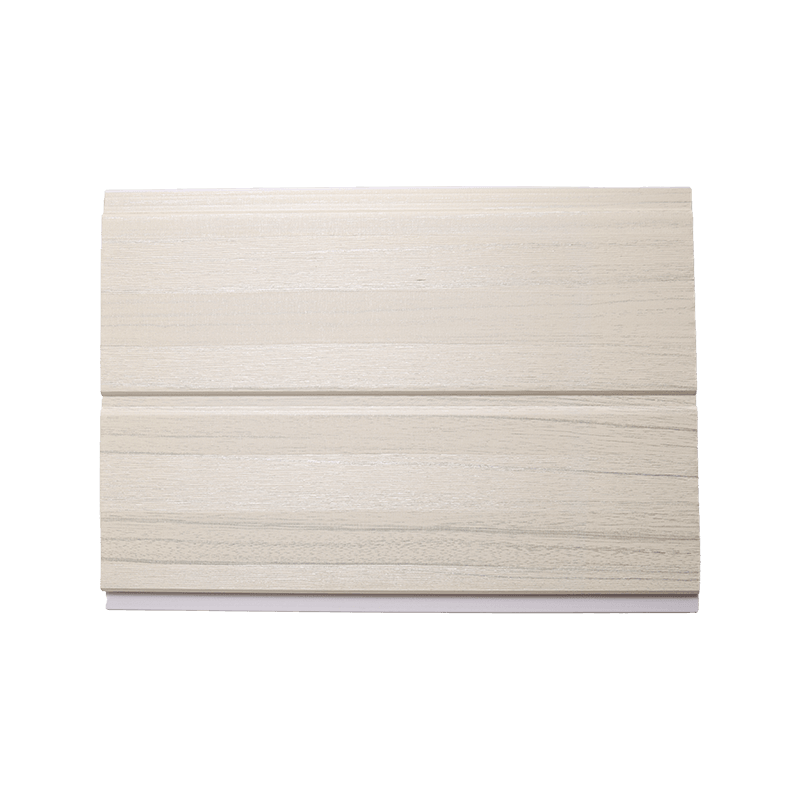

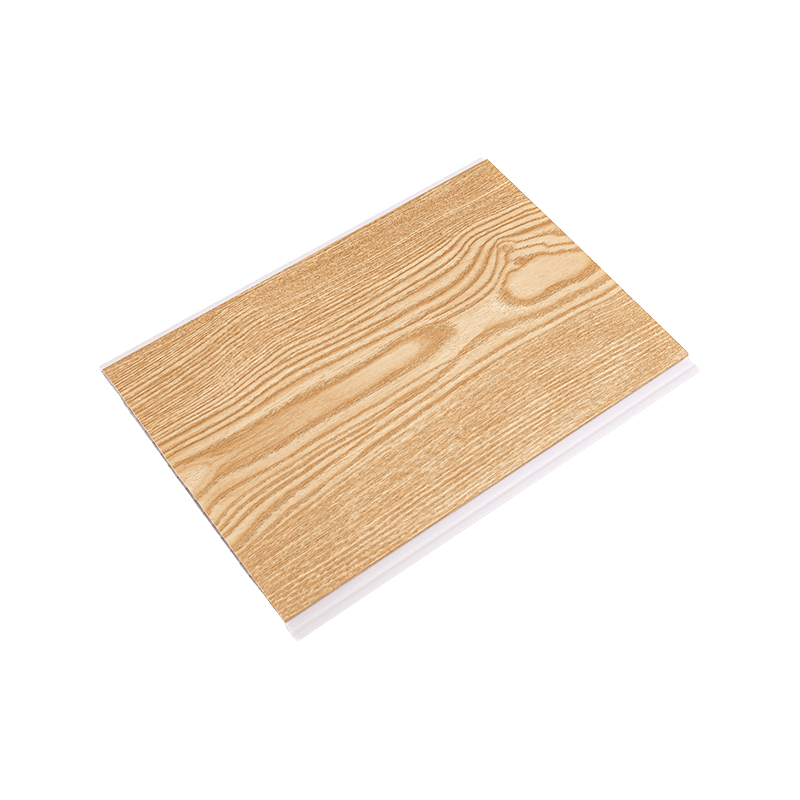

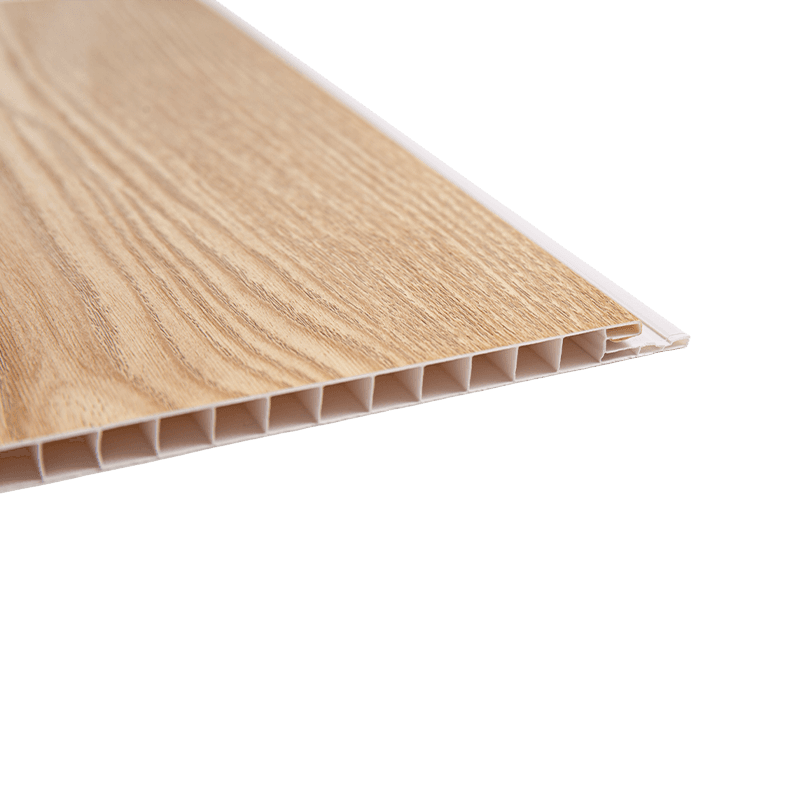

200*8mm Recessed PVC Ceiling, Roof PVC Ceiling - V Sewing

Key Advantages

• Surface density of 3.0kg/m² provides a defined reference for load calculations
• 8mm thickness: Significantly increased section modulus, offering higher flexural stiffness compared to 6mm and thinner panels

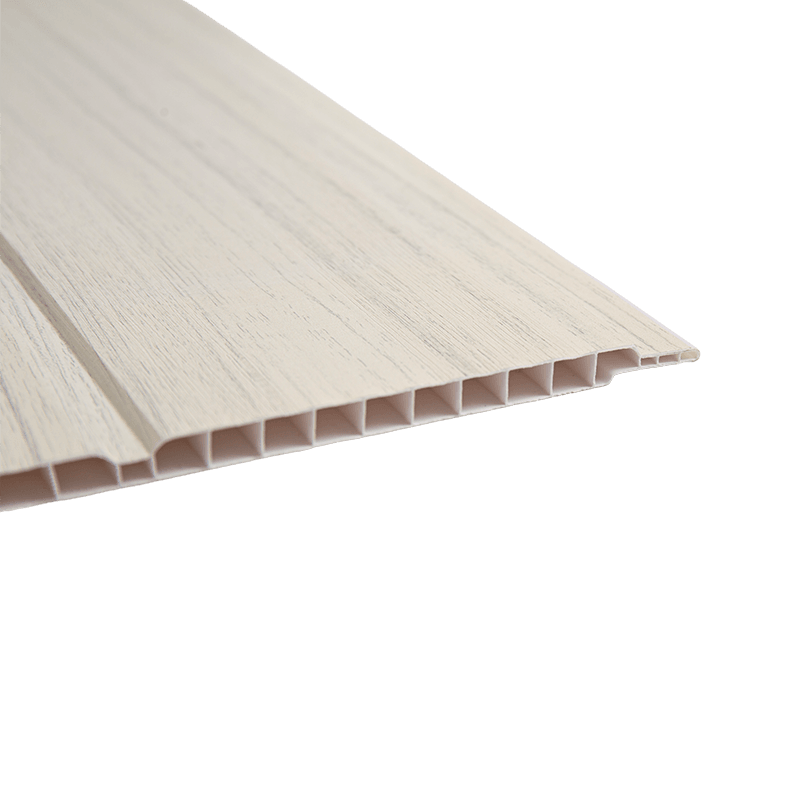

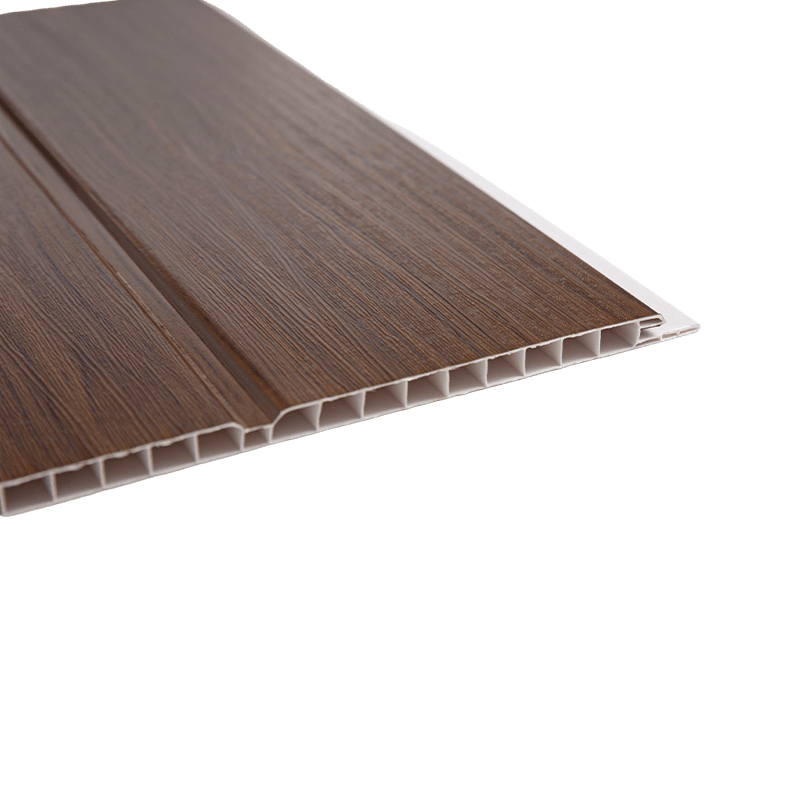

• V-groove design: Creates uniform V-shaped recesses between panels, enhancing ceiling line definition
• Dense surface structure: Resists dust and grease penetration, simplifying cleaning operations
• Clip-in modular joint: Requires no additional fasteners or specialized tools during installation

Product Features

Application Scenarios

• Residential wet areas (kitchens, bathrooms, balconies)
• Residential dry areas (living rooms, corridors, dining rooms, bedrooms)
• Commercial spaces (retail stores, beauty salons, clothing shops, supermarkets)
• Office spaces (open-plan areas, meeting rooms, reception areas, pantry areas)
• Hospitality (hotel guest rooms, hostel common areas, corridors)
• Public facilities (hospital waiting areas, school corridors, community center rooms, libraries)

Frequently Asked Questions and Precautions

Q1: What are the main practical differences between 8mm and 6mm thickness?
The 8mm thickness provides flexural stiffness approximately 2.4 times that of 6mm (section modulus is proportional to the cube of thickness). Under identical framework spacing, the 8mm panel exhibits significantly less deflection than the 6mm panel. Additionally, impact resistance and surface scratch resistance are improved with the 8mm thickness.

Q2: What is the maximum recommended framework spacing?
Values depend on installation orientation and expected loads. For standard ceiling applications (non-accessible, no live load beyond self-weight), the recommended framework spacing for 8mm thickness does not exceed 600mm. Refer to product test reports or manufacturer installation specifications before installation.

Q3: Does the V-groove affect overall sealing performance?
The V-groove is a decorative recess. The contact surfaces between panel bodies remain sealed. Under normal use conditions, the grooves do not cause water leakage or airflow penetration.

Q4: Does the 8mm thickness increase cutting difficulty?
The 8mm thickness can still be cut using fine-tooth woodworking saw blades (tooth spacing ≤ 3mm) or electric jigsaw tools. Cutting resistance is slightly higher compared to thinner panels; electric tools with a minimum power of 500W are recommended.

Q5: Can decorative films or coatings be applied to the surface?
The product surface is non-porous, resulting in limited adhesion for conventional water-based or solvent-based paints. To change the color, use factory-matched color system products or apply PVC-specific primer before coating.

Precautions

• Verify substrate flatness before installation: height difference ≤ 2mm when measured with a 2-meter straightedge
• Storage requirements: Store flat on dry, hard ground with stack height not exceeding 1.5 meters; avoid placing heavy objects on top of stored panels
• Wear safety goggles and dust masks when cutting to avoid inhaling PVC dust
• For high-humidity environments (such as saunas or steam rooms), confirm ambient temperature does not exceed 60°C; use waterproof framework and seal joints with appropriate sealant
• Avoid cleaning with solvents containing acetone, benzene, or strong alkaline agents, as these may cause PVC swelling or discoloration
• Inspect color consistency across multiple batches before large-scale installation to ensure no visible color difference
